GE Maxxima Multi-Tier H-Type Automated Commercial Broiler Cage System Designed to Improve FCR and Farming Efficiency

Gartech’s GE Maxxima is a multi-tier, H-type automated broiler cage system built for high-efficiency, large-scale farming. It delivers better feed conversion, faster turnaround, and a clean, deep litter-free environment.

Designed for medium to large operations, it maximizes housing capacity without increasing land footprint. With integrated automated feeding, nipple drinking, manure removal, and bird harvesting, GE Maxxima ensures improved efficiency and complete control across every production cycle.

See Our Systems at Work

Gartech GE Ultima Breeder Pullet Product

Reliable Automation. Optimal Comfort. Maximum Yield.

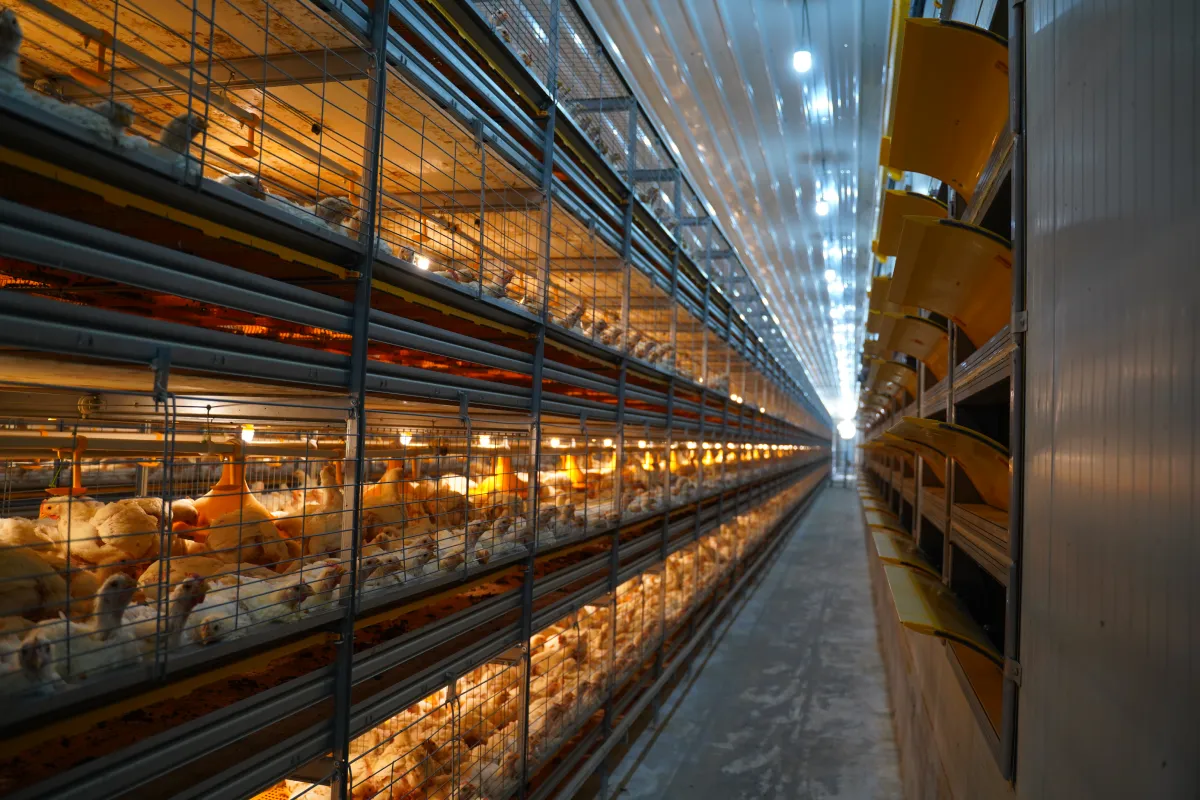

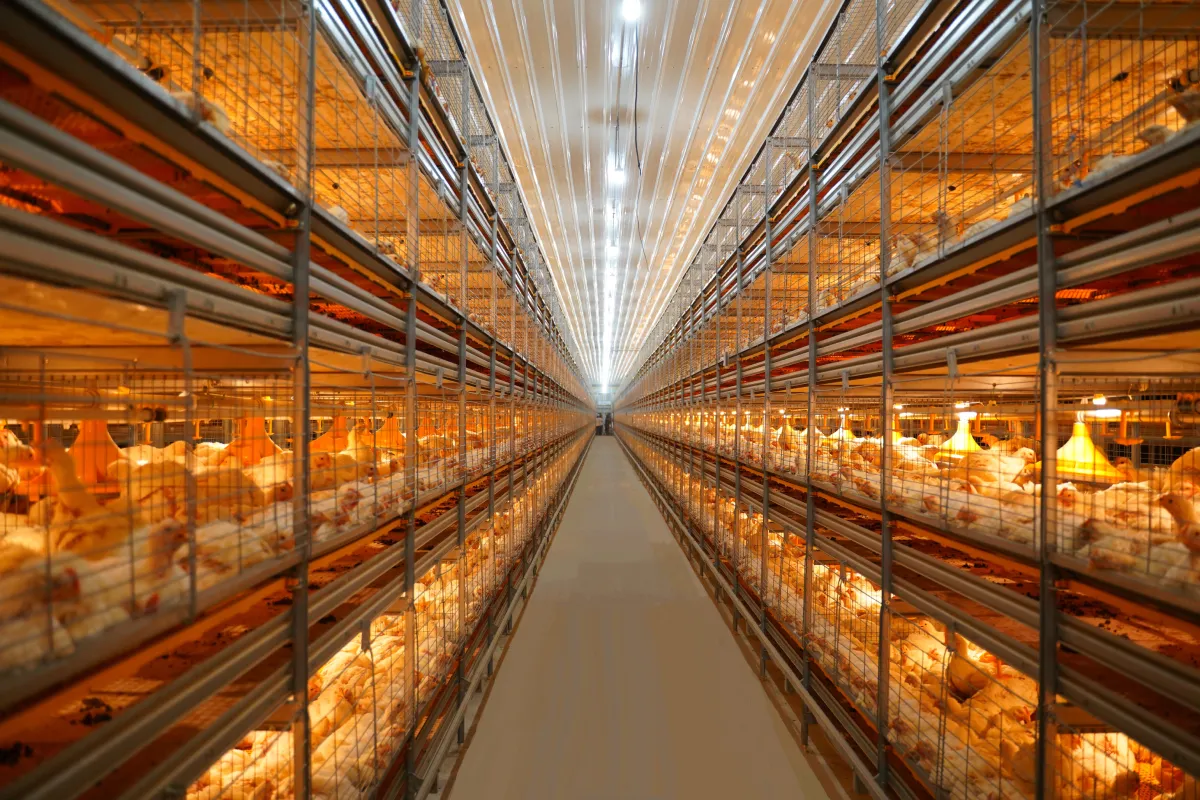

GE Maxxima H-Type Multi-Tier Broiler Cage System

GE Maxxima maximizes space through vertical farming, powered by advanced automation to enable high-density broiler production and an easy-to-manage housing environment.

01

High stocking farming for efficient rearing

3- and 4-tier cage systems maximize space utilization and increase bird capacity while maintaining organized rearing zones for efficient management and better FCR. Higher bird density also improves heat retention during early rearing, helping reduce heating requirements and maintain a more stable house environment.

02

Special Soft Flooring for Quality Chicken

Soft plastic floors ensure minimal breast injuries and blisters. By keeping birds off litter and on controlled, cushioned surfaces, the system protects chest meat quality and enhances processing yields.

03

Frequent Manure Removal and Clean House Conditions

Polypropylene manure belts beneath each tier enable regular manure removal, reducing ammonia build-up and improving in-house air quality. Litter-free production lowers contamination risks and supports more environmentally responsible broiler farming.

04

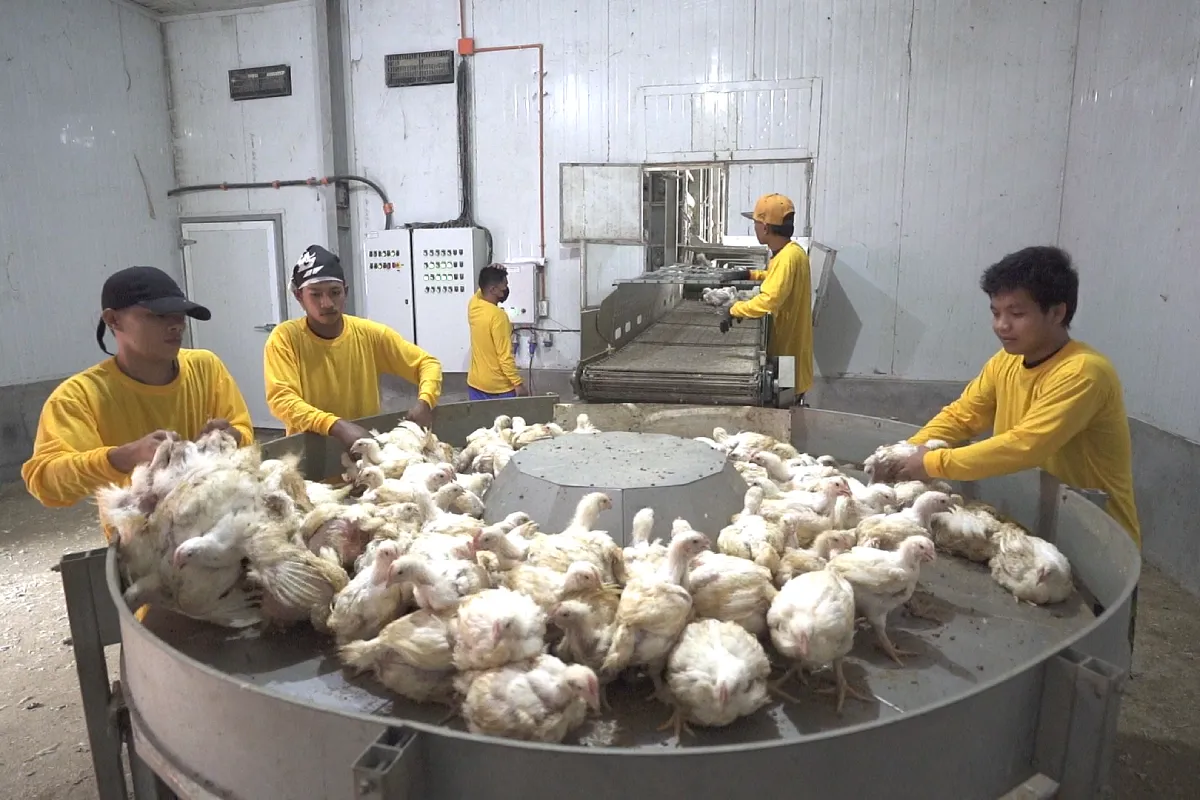

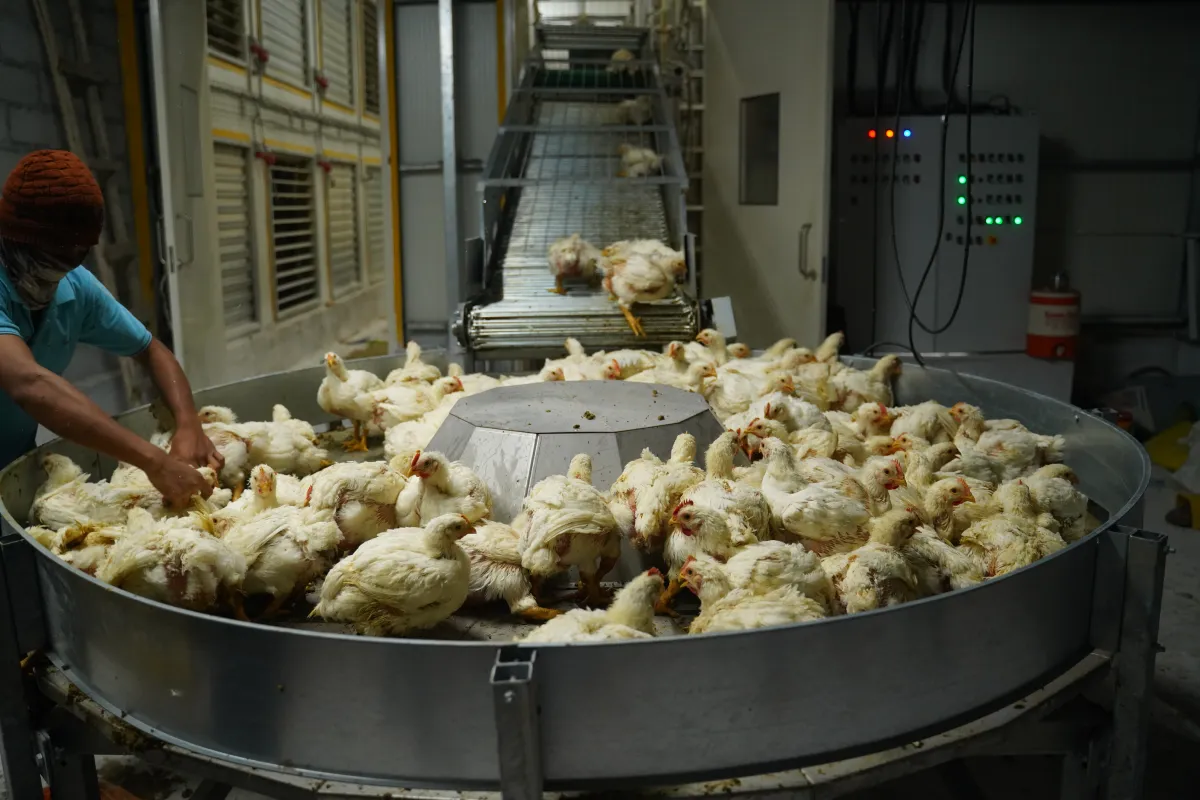

Simplified Harvesting & Flock Turnaround

The automatic bird harvesting system streamlines bird collection. With no litter handling required, post-flock cleaning and disinfection become faster and easier - shortening turnaround time and supporting higher annual production capacity.

Automation-Driven Broiler Housing for Better FCR and Faster Turnaround

With its multi-tier H-type design and automated feeding, watering, and manure removal, GE Maxxima helps commercial broiler farms achieve better FCR, increase production cycles per year, and minimize manual handling in daily operations.

More Cycles per Year

Deep Litter-free housing, regular manure removal, and simplified cleaning make it faster to prepare flocks batches. Under optimized management, farms can target up to 8 production cycles per year, increasing annual bird throughput and revenue potential.

Improved Bird Quality and Fewer Injuries

Special soft floors helps reduce breast blisters and other injuries. By keeping birds on cushioned surfaces, GE Maxxima supports better chest meat quality and reduces carcass downgrades at processing.

Lower Operating Costs Over Time

High stocking density, improved heat retention during brooding, elimination of litter costs, and reduced daily labour requirements all contribute to a lower operating cost per bird and stronger long-term return on investment.

Up to 2.6× Higher Bird Capacity per Shed

The multi-tier structure allows farms to house up to 2.6 times more birds within the same building footprint compared to floor rearing, increasing output without proportional infrastructure expansion.

A Closer Look at Innovation in Action

Explore real installations of the GE ULTIMA H Frame Housing System - showcasing precision engineering, efficient design, and superior build quality across farms worldwide.

Technical Specifications

Parameter	Specification
Tier Configurations	3-tier, 4-tier
Cage Box Size	7.9 ft (242 cm) L × 5.2 ft (158 cm) W
Cage Height	19.6 inches (50 cm)
Birds per Cage	70–110 birds (depending on configuration and stocking density)
Area per Bird	0.37–0.59 sq. ft
Birds per Square Meter	18.31–28.77 birds/sq. m
Flooring	Special soft-tier flooring to reduce injuries
Feeding System	Compatible with automated feed distribution systems

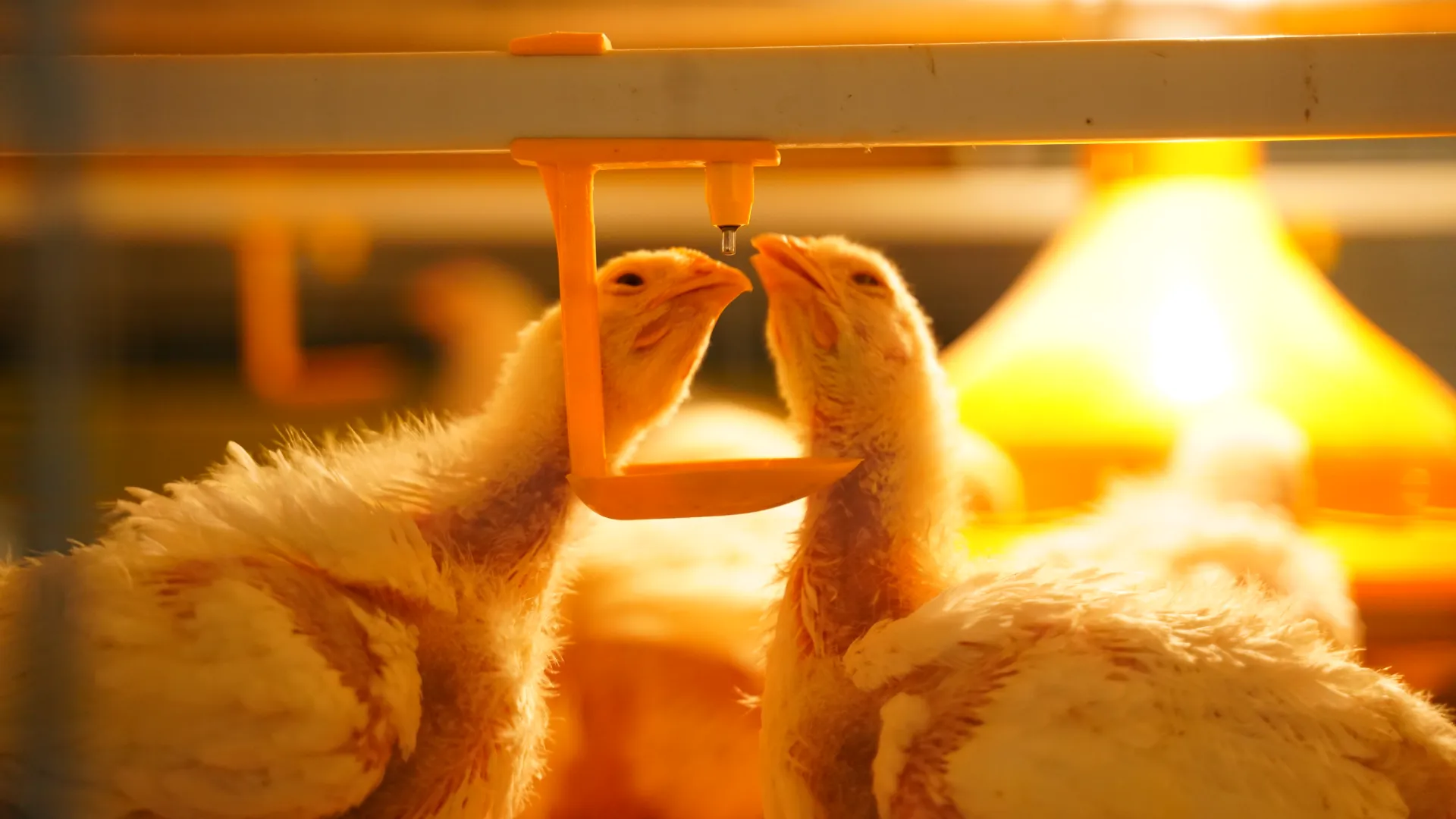

Drinking System	Nipple drinking system
Manure Handling	Polypropylene manure belt system
Typical Production	Up to 8 production cycles per year (under managed conditions)

Boost Broiler Farm Efficiency with GE Maxxima Automated Cage Systems

Discover how Gartech’s GE Maxxima automated broiler cage system can help you improve FCR, increase bird throughput, and streamline commercial broiler farm automation across your operations.

Download Brochure

Clarity That Helps You Choose Better

GE Maxxima is ideal for medium to large commercial broiler farms seeking to transition from floor rearing to high-density, cage-based vertical production with automation compatibility.

When properly designed and managed, GE Maxxima can enable up to 2.6 times more birds within the same building footprint compared to traditional floor systems.

Uniform access to feed and water, reduced competition, structured cage environments, and lower feed wastage all support improved feed conversion and reduced feed cost per kilogram of live weight.

With faster cleaning, easier disinfection, and streamlined harvesting, farms can aim for up to 8 production cycles per year under optimized management and climate control.

Yes. Savings come from improved FCR, elimination of litter costs, reduced heating requirements due to higher density, lower daily labour intensity, and reduced antibiotic use supported by cleaner housing conditions.

The system is designed for compatibility with automated feeding, nipple drinking, manure removal, and modern ventilation systems, allowing farms to progressively upgrade toward fully automated broiler houses.
